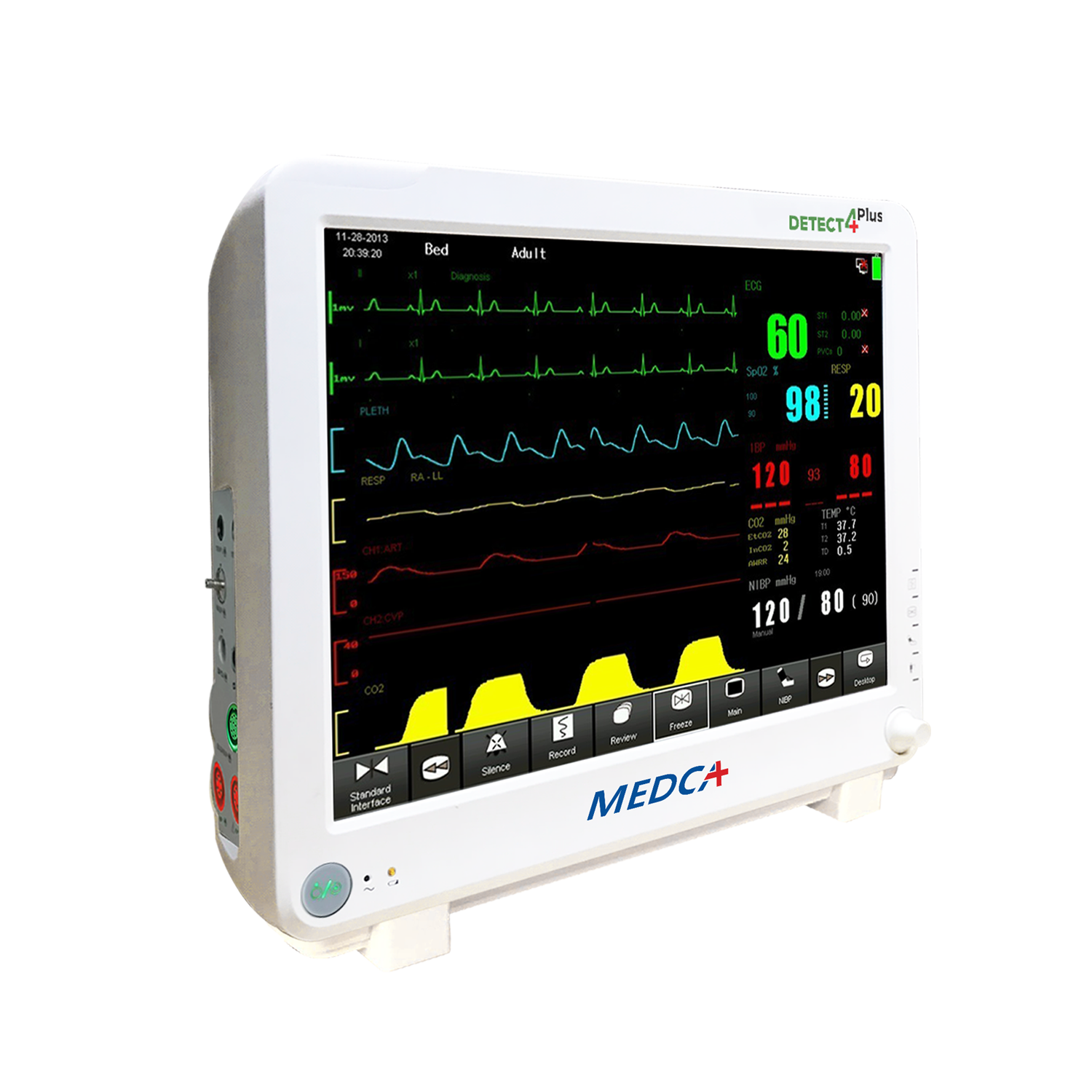

Patient Monitor 7 Parameters (DETECT 4 PLUS)
The Patient Monitor 7 Parameters (DETECT 4 PLUS) is an advanced patient monitoring device designed to provide real-time measurement of seven vital parameters with high accuracy. It supports monitoring of ECG, NIBP, SpO₂, body temperature, respiration, etCO₂, and IBP. Equipped with a high-resolution color display, intelligent alarm system, and user-friendly interface, this monitor ensures reliable and continuous patient assessment. Ideal for use in hospitals, clinics, and critical care units (ICU/CCU)
Tech Specs
Standart Regulator
Security
IEC 60601-1
Physical
Net Weight
5.4 kg
Patient Monitor Size
360 x 324 x 120 mm ( L x W x D)
Screen
Type
15" Colored TFT LCD with backlighting LED
Touchscreen
Yes
Resolution
1024 x 768
Trace Amount
7 Traces (Standard), Max 11 Traces if Multi-Gas Configured
Custom Appearance Mode
Number / Waveform Color Change
Appearance Options
Big Number, Dynamic Trand, OxyCRG, Other bed view, Freeze
Power (Battery)
Battery Amount
1
Battery Type
Replaceable ion lithium 11.1 V / 4800 mAh
Operation Time
2 hours (with ECG, SpO2, and NIBP measurements every 15 minutes)
Other Product Benefits
12 Lead ECG, SpO2, NIBP, Temperature, Respiration, 2 IBP, EtCO2 (Mainstream & Sidestream)
15-inch TFT LCD touch screen
Li-ion battery (2 hours)
Ethernet, WLAN, USB, VGA
Recording printer connector
Centralized monitoring system support (Optional)
